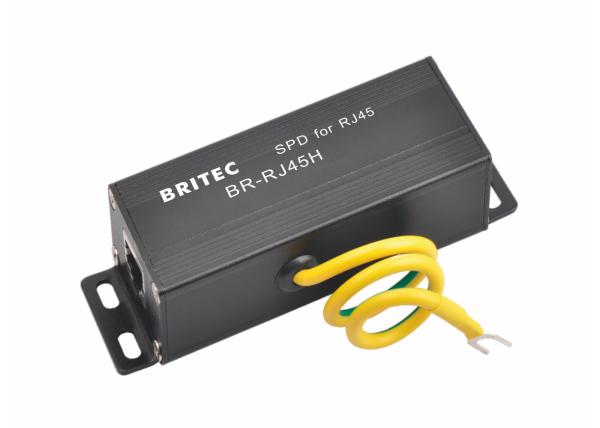

Ethernet RJ45 Port Sure Protective Device Networking Surge Protector
Ethernet RJ45 Port Sure Protective Device Networking Surge Protector About this item:
• BRRJ45H-8L SPD is specially designed to avoid failures in data transfer between equipment inside the same network.
• Over voltage protection equipment
• It protects the input of the electronic circuits of the network cards against harms due to transient currents.
• To protect equipment from induced over-voltage, operating overvoltage and caused by the electrostatic discharge damage.
• BRRJ45H-8L is a protector with RJ45 input and output connectors, with a withstanding current up to 5kA for line.
• Flow capacity is big, fast response
• It’s designed to protect individually equipment connected to the computers network.
Ethernet RJ45 Port Sure Protective Device Networking Surge Protector Product Details:
| | BRRJ45H-8L |
| Test standards | IEC61643-21 |
| Nominal voltage Un | 5V |
| Max.continuous operating d.c.voltage Uc | 6V |
| Max.continuous operating a.c.voltage Uc | 4V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤30V |
| Voltage protection level [line-PG] Up | ≤500V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection (input/output) | RJ45 socket 8line |
| Bandwidth | 300 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Dimension:
Ethernet RJ45 Port Sure Protective Device Networking Surge Protector Main features:
• Using multilevel protection circuit, low residual.
• Network surge protective device suits for network equipment, telecommunications, router, HUB, MODEM etc.
• Ground through special craft processing, to avoid interference.
• Sensitive communication network equipment, to protect from lightning overvoltage and induced overvoltage, electrostatic discharge caused by damage.
• Low residue, small volume, convenient installation.
Ethernet RJ45 Port Sure Protective Device Networking Surge Protector Installation:
• It should be properly grounded to work. The Ethernet ground wire (11 Inch - 12 AWG) on the surge protector needs to be connected to ground through the shortest path.
• The Line-to-Line Ethernet surge protection mode helps protect against short circuits between different nodes of the network system while the Line-to-Ground mode protects against short circuits between the network node and the earth.
Company information:
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Certificate:
Payment & Shipping:
FAQ:
Q1: What is your terms of payment?
A1: T/T, Paypal etc.
Q2: What is your terms of delivery?
A2: EXW, FOB, CIF, CNF.
Q3: How about your delivery time?
A3: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4: Can you produce according to the samples?
A4: Yes, we can produce by your samples or technical drawings.
Q5: Is samples available?
A5: Samples are available, but it is not free.
